Zurn AquaSense ZEMS Series (Pre 2016) Parts Breakdown

Zurn AquaSense ZEMS Series (Pre 2016) Parts Breakdown

Item #: ZURN-BD-08.5

Manufacturer: Zurn

How to use this page:

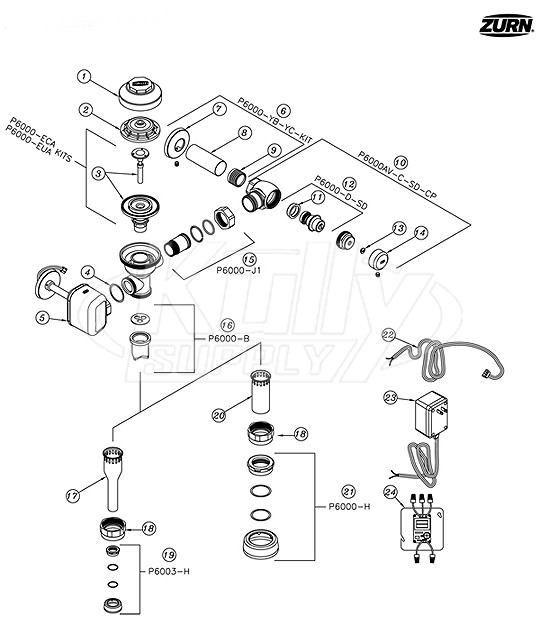

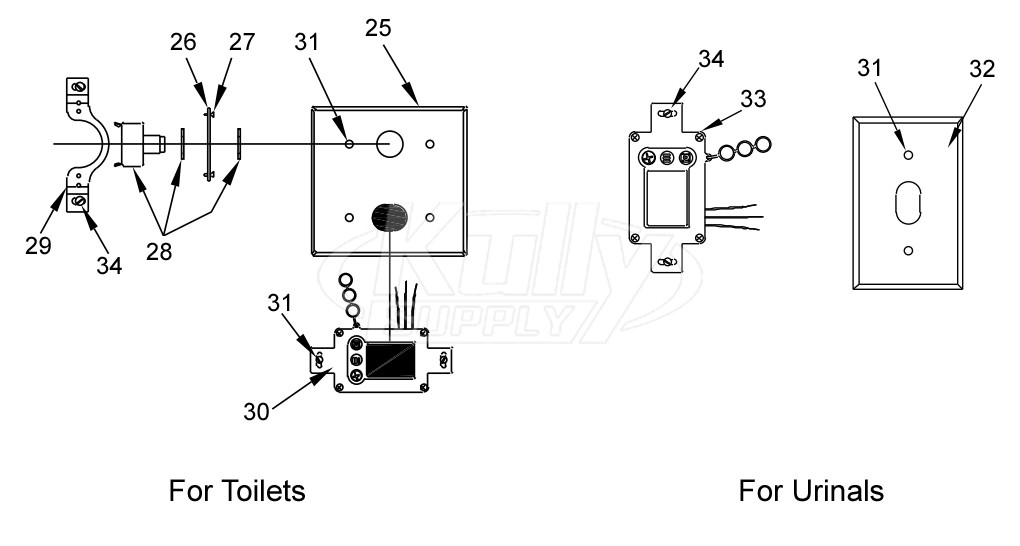

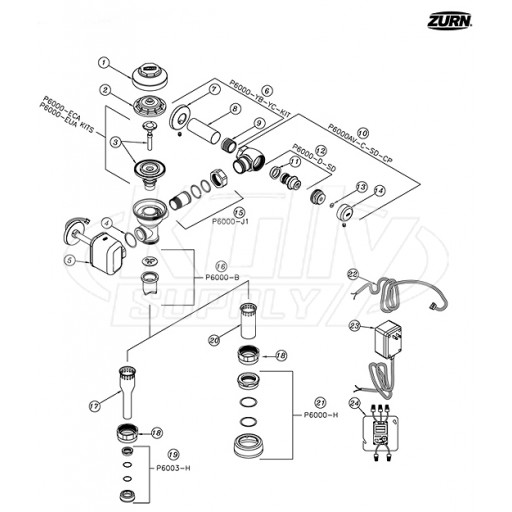

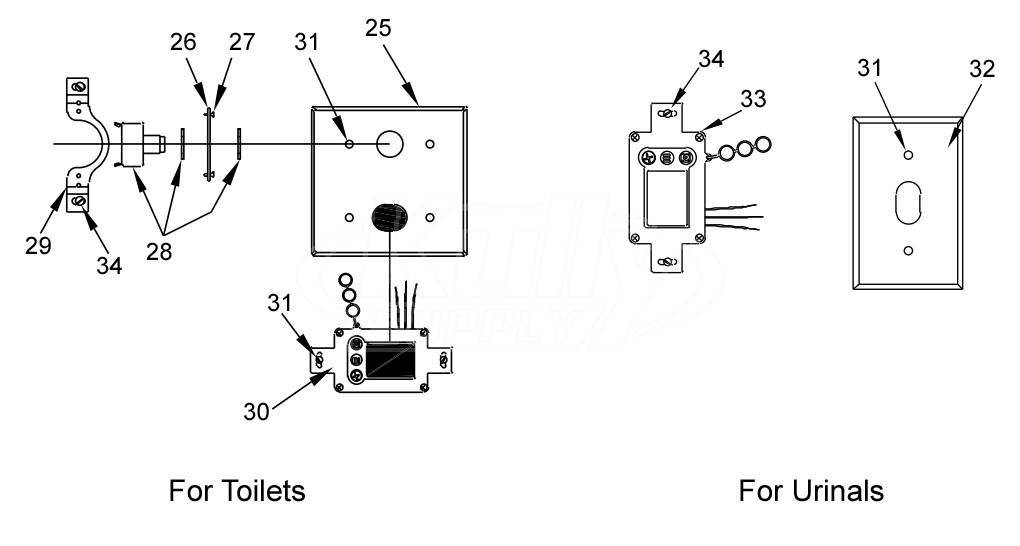

1. Identify the part(s) you need in the image.

2. Look for the corresponding "Item #" in the list below.

3. Add item to cart

4. Click on the item to view more details

Part #	Part Details	Price	Options
1	Zurn P6200-LL-CP Outside Brass Cover Item #: 112981 Learn More	List Price: $75.48 $68.14 You Save 10%
2	Zurn P6000-L Plastic Inside Cover Item #: 107681 Learn More	$12.05
3	Zurn AquaVantage Triple Filter Diaphragm Kits Learn More	More Info
4	Zurn P6000-M10 Handle Gasket Item #: 112973 Learn More	$1.50
5	Zurn PEMS6000-HYM Flush Actuator Item #: 106152 Learn More	$375.84
6	Zurn P6000-YBYC Sweat Solder Kit 1" (with Cast Wall Flange) Item #: 113113 Learn More	List Price: $48.60 $43.86 You Save 10%
7	Zurn P6000-YC Cast Wall Flange 1" Item #: 113117 Learn More	List Price: $45.66 $41.22 You Save 10%
8	Zurn P6000-YB-CVR6 Cover Tube 6" Item #: 134013 Learn More	$24.48
9	Zurn P6000-YBA Sweat Solder Kit 1" (for Concealed Flush Valves) Item #: 113115 Learn More	$10.68
10	Zurn P6000AV-C-SD-CP Vandal-Resistant Screwdriver Stop Cap 1" Item #: 107705 Learn More	List Price: $99.79 $90.10 You Save 10%
11	Zurn P6000-D42 Seal/Plug Seat (for 1" and 3/4") Item #: 112901 Learn More	$8.45
12	Zurn P6000-D-SD Control Stop Repair Kit - 3/4" and 1" Item #: 106096 Learn More	$13.50
13	Zurn P6000-C33 Stop Snap Cap Screw Cover Item #: 112894 Learn More	List Price: $2.43 $2.18 You Save 10%	More Info
14	Zurn P6000-VC Vandal-Resistant Control Stop Cap Item #: 107851 Learn More	$17.98
15	Zurn P6000-J1 Tailpiece Assembly 2-1/8" (for Rough-In 4-1/4" to 5-1/4") Item #: 112943 Learn More	$24.45
16	Zurn P6000-B Vacuum Breaker Repair Kit (Discontinued) Item #: 107690 Learn More	More Info
17	Zurn P6003-A-CP Vacuum Breaker 3/4" x 8-1/2" Item #: 112835 Learn More	List Price: $41.42 $29.32 You Save 29%
18	Zurn P6000-AA-CP Vacuum Breaker Nut Item #: 112833 Learn More	$18.24
19	Zurn P6003-H Escutcheon & Coupling Assembly 3/4" Item #: 107698 Learn More	$24.18
20	Zurn P6000-A-CP Vacuum Breaker 1-1/2" x 8-1/2" Item #: 112849 Learn More	List Price: $41.42 $29.32 You Save 29%
21	Zurn P6000-H Escutcheon & Coupling Assembly 1-1/2" Item #: 107700 Learn More	$24.18
22	Zurn PEMS6000-IS-CW Connecting Wire 10' (for ZEMS-IS) Item #: 113223 Learn More	$12.06
23	Zurn P6000-PC6 Power Converter 6 VDC Item #: 113221 Learn More	More Info
24	Zurn P6000-HW6 Hardwire Power Converter Item #: 113222 Learn More	$77.02
25	Zurn PESS6000-22 Closet Sensor Cover Plate (with Override Hole 4x4) Item #: 113207 Learn More	List Price: $104.95 $70.64 You Save 33%
26	Zurn PESS6000-23 Closet Bracket Item #: 113212 Learn More	$10.85
27	Zurn PESS6000-27 Bracket Screws (2 Included) Item #: 113215 Learn More	$4.10
28	Zurn PESS6000-24 Override Push Button Assembly (Discontinued) Item #: 113213 Learn More	More Info
29	Zurn PESS6000-25 Yoke Item #: 113214 Learn More	$18.55
30	Zurn PEMS6000-26 Toilet Wall Sensor Item #: 100479 Learn More	$343.64
31	Zurn PH6000-HY35 Vandal-Resistant Hex Socket Head Screw 1/2" (for Cover Plates) Item #: 113195 Learn More	$7.35
32	Zurn PESS6000-22A Urinal Sensor Cover Plate 2x4 Item #: 113208 Learn More	List Price: $65.48 $44.02 You Save 33%
33	Zurn PEMS6000-26A Urinal Wall Sensor Item #: 100267 Learn More	List Price: $478.94 $404.74 You Save 15%
34	Zurn PESS6000-28 Yoke Screws (2 Included) Item #: 113216 Learn More	$4.10
